Report

Create an Excel report from the Print tab for all printable items on the current Print Platform. This report Includes selectable parts and printing information.

Note: (NextDent 5100 Printer) Click Simple UI to switch between the simple and the advanced User Interface. In the Simple UI, only the tools for minimum workflow are visible.

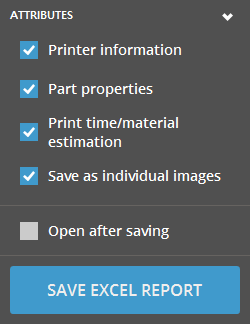

Report Attributes

Printer Information - Includes the printer information for the currently set Print Platform in the report.

Part Properties - Aggregate information for all printable part on the Print Platform.

Print Time / Material Estimation - Print time and material estimation information.

Save as Individual Images - Option to save individual images of parts.

Open After Saving - Option to open the report file after generation.



To create a Report:

  1. Select the Report command from the Print Tab.
  2. Choose the Attributes that you want to include in the report.
  3. Click the Save Excel Report button and choose a location to save the report.
