Check Cartridge

The Check Cartridge command shows the material level of installed cartridges, it also checks if the cartridge is properly inserted.



  1. In the Print tab, click Printer Tools.

  2. Click Check Cartridge.

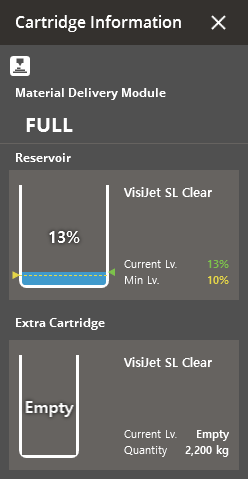

  3. A dialog window will appear showing the cartridge status.




  4. Current is the current amount of material in the printer, Quantity or Capacity is the total capacity of the cartridge.

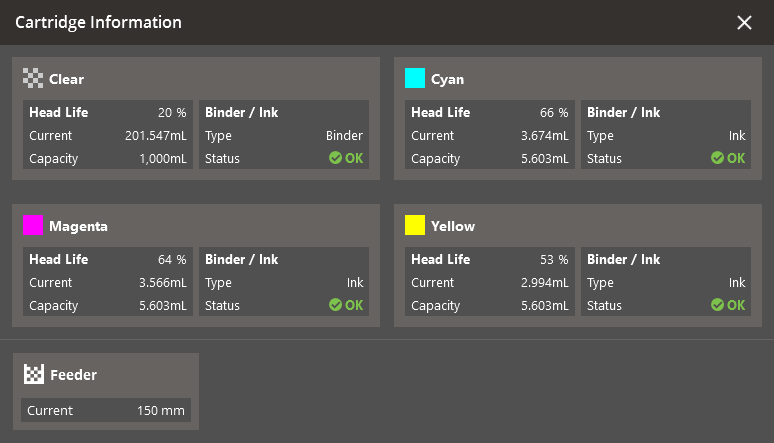

    CJP Printers:

    Head Life is the percentage of life left on the printer head. If the Binder or Ink level is low, the status will say low.

    Note: If the cartridge is not properly inserted, an error will appear. Check that the cartridge is properly inserted and try again.
