Dental Hollow

Supported Printers:

Hollow orthodontic models with editable wall thickness and open bottom.



Hollowing Models

  1. In the Print tab, click Dental Hollow.

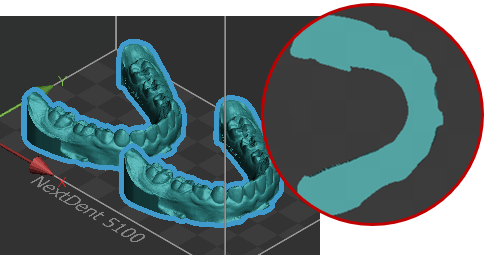

  2. Select parts with closed bottom.

    Note: When the dialog opens, all the parts loaded on the Print module will automatically be selected. You can add or remove target parts to or from the selection.

  3. Specify the shell thickness.

    Note: Click Restore to restore the factory defaults for all settings.

  4. To reorient parts after hollowing, select the Reorient option.

  5. Click Apply.

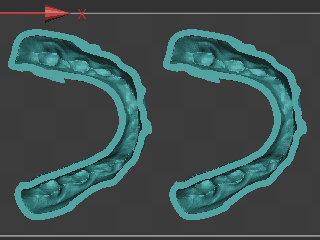

  6. Check the results and click Close (X) to exit the command.



See Also

Hollow
