Combine / Separate

Change part or subpart structure. It is useful to edit subparts separately, or print an assembly as separate parts.

Note: Click Simple UI to switch between the simple and the advanced User Interface. In the Simple UI, only the tools for minimum workflow are visible.

There are two operations available within this command:

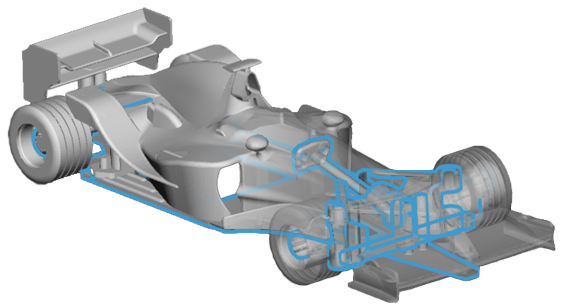

Combine - Select and combine subparts to create a new part.

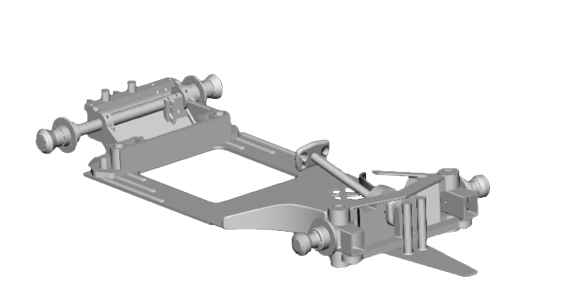

Separate - Separate selected part into it's subparts, this means that the subparts will be separate parts.

Note: Auxiliary parts, such as supports etc, will be removed from the related part when using this command.

IMPORTANT: It is strongly recommended that you combine parts when creating supports if they may be colliding or interlocked.



  1. In Prepare tab, click Combine / Separate.

  2. Select action: Combine or Separate.

    Combine

    1. Select parts to include.

    2. Click Combine into new part.

    3. The subparts will be separated into a new part.

    Separate

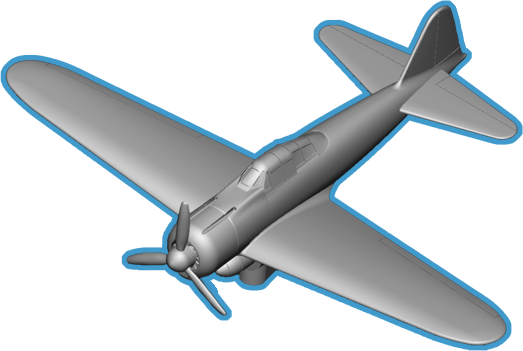

    1. Select a Part that contains multiple subparts.

    2. Click Separate Subparts.

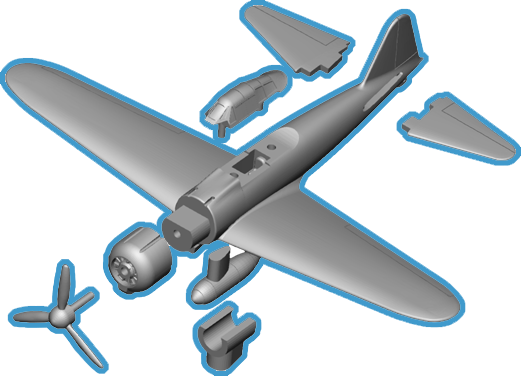

      Subparts will be separated so they can be transformed and edited separately.

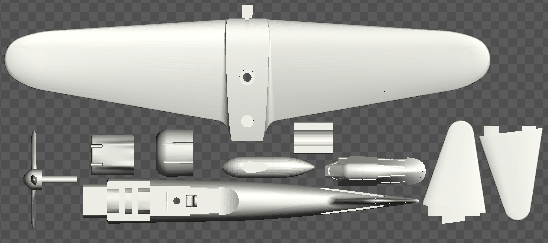

    3. To easily spread out the parts, use the Auto Place command to place the separated parts on the Print Platform.
