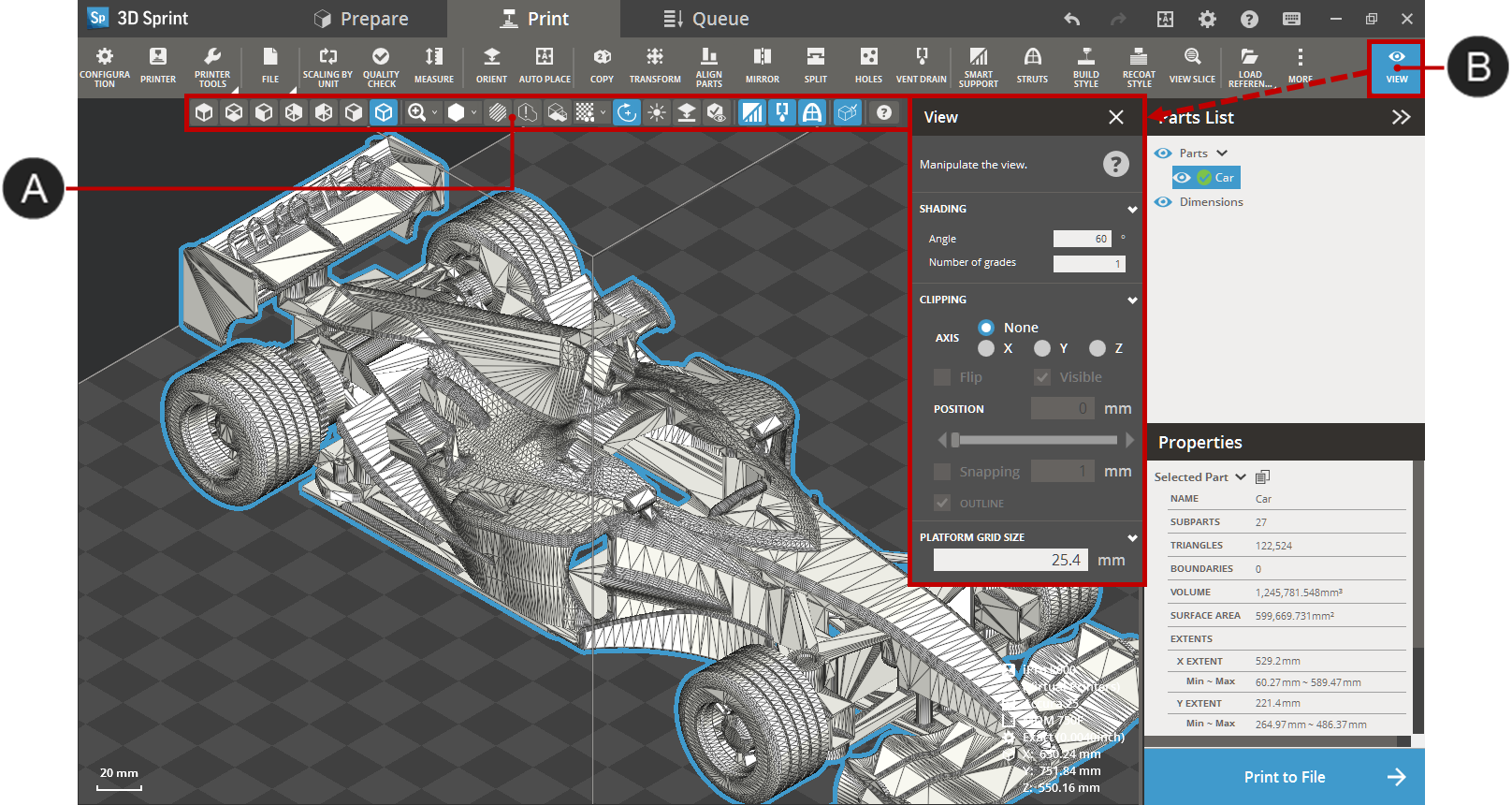

Top View - View top.

Bottom View - View bottom.

Front View - View front.

Back View - View back.

Left View - View left.

Right View - View right.

isometric View - View isometric.

Note: Use Alt + Right Click + Drag to rotate the view around the Z-axis of screen view.

In - Zoom in.

Out - Zoom out.

Extents - Zoom out or in to view parts.

Platform - Zoom out or in to view the Print Platform.

Area - Drag out a rectangle on the screen to zoom in.

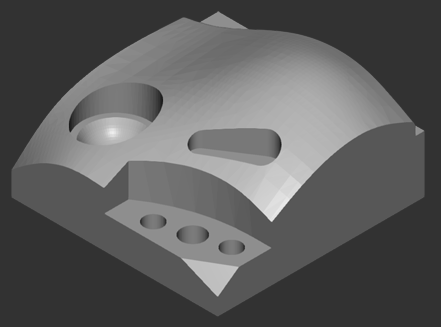

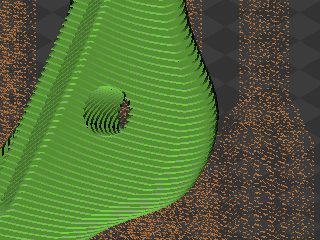

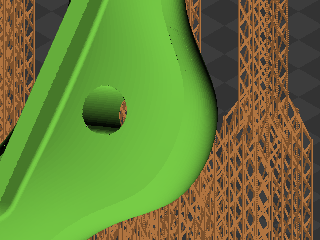

Basic - Normal shading.

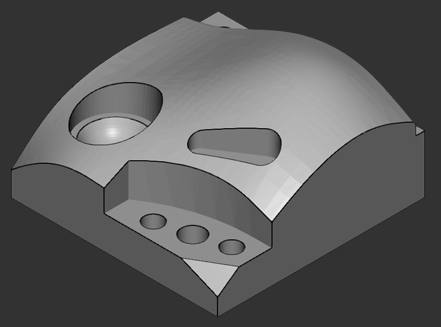

Sharp Edge - Highlight sharp edges.

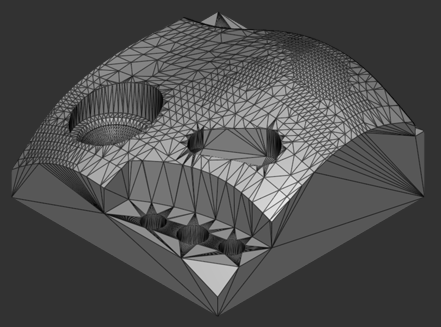

Edge - View mesh edges.

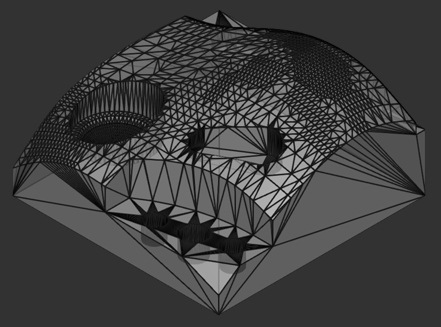

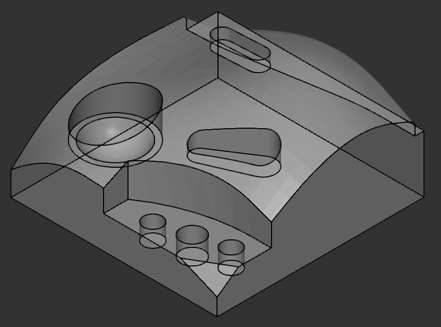

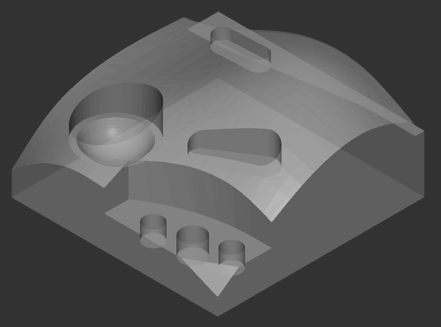

Transparent - Transparent shading.

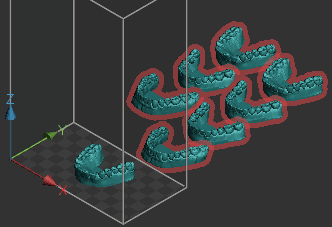

Show/Hide Silhouette for Problem Parts - See the silhouette of problem parts. Toggle to view the silhouette of problem parts. Use the P shortcut key to view the silhouette of problem parts at any time you need.

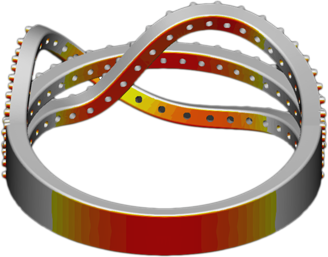

Show/Hide Down Face - See overhangs and features that need support. Use the D shortcut key to toggle the visibility of down face on or off. Use the D + R shortcut keys to reset the threshold angle and number of grades for the visibility of down face.

Part Color - Shows both the vertex color and texture mapped color.

Random Color - Shows parts with different colors.

Material - Show material of the parts.

Hardness - Shows hardness of the parts. This is available when dual materials are applied to ProJet MJP 55XX or ProJet MJP 56XX printers.

Infill - Shows the infill shells of a parts.

Dynamic Rotation Center - Toggle the dynamic rotation center on or off. If this option is toggled on, the center of rotation becomes the location where you right-clicked. If this option is toggled off, the center of rotation is the center of the Print Platform.

Bright Light Theme - Shows parts with a brighter light theme for a better and more accurate display when working with colors. Use the B shortcut key to toggle the visibility of down face on or off.

Orient to Face - Orients a view normal to a selected face. Click Orient to Face and select a face on a model, that you wanted to be parallel to the screen.

Show Selected Part Only - Shows selected parts only and makes all other parts temporarily invisible.

Print Colors - Allows to view parts with colors to be printed.

Select Through - Allows to select faces through a model.

Axis - Choose clip direction or turn off clipping by clicking None. To set the current view direction as the clipping direction, click Camera .

Flip - Reverses the clip direction.

Clip - Turn on or off clipping visibility.

Clip On	Clip Off

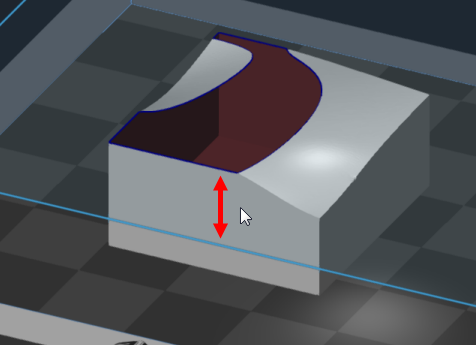

Plane - Turn on or off clipping plane visibility.

Outline - Turn on or off the visibility of outline of clipped section.

Outline On	Outline Off

See Through - Turn on or off the see-through mode when viewing the outline of clipped section. Use this option to make the section transparent and to see a clearer outline of the section.

Interactive - Turn on or off the visibility of outline of clipped section while changing clipping position. This option is available when the Outline option is on.

Position - Enter position of clipping plane or adjust the position by using the Position slider.

Snapping - Enter snapping distance. The clipping-plane snaps to the specified snapping distances.

Tilt - Enter tilt angles of the clipping plane. You can define tilt angles for the other two axes based on the normal direction of the defined clipping plane. For example, if there is a clipping plane with the X-axis as normal, tilt angle 1 () is an angle rotated around Z-axis and tilt angle 2 () is an angle rotated around Y-axis.
